#3204 11/16/2022 04:38 PM
Joined: Jan 2019
Posts: 1,419
Likes: 12
sonny Offline OP
MBN veteran
OP Offline
MBN veteran
Joined: Jan 2019
Posts: 1,419
Likes: 12
New loggin tractor! lol! Dont know what year it is,---cant find any serial number on it but I would guess mid 50's.
Motor stuck but I now have it loose. One of the former owners had a complete new undercarriage put on it, then parked it in the shed where it sat for many years.
Front grill is messed up but the hood itself is good. Also have the guard that goes in front of the grill.
This is the long track 420,--5 roller and 5 speed transmission model.
I also have a 420-w utility loader/backhoe tractor. I think its a 1956 model from the numbers on it. It has the Davis 100 loader and Davis 100 backhoe for it that is not currently mounted on it.
These 420--430 series units are hard to get cause collectors grab them up and hoard them.
I need this one to log with so hope to get it running soon, IF this snow quits! lol!

Attached Images

"A machine you build yourself is a vote for a different way of life. There are things you have to earn with your hands."
Joined: Jan 2019
Posts: 1,419
Likes: 12
sonny Offline OP
MBN veteran
OP Offline
MBN veteran
Joined: Jan 2019
Posts: 1,419
Likes: 12
Got the motor unstuck and running, loader goes up and down, BUT, ----- cant shift into gear! Damn clutch stuck and wont release! When I push hard on the peddle it makes a loud grinding noise, so I assume the clutch is out. IF that is the case,---motor gotta come out to work on the clutch.


"A machine you build yourself is a vote for a different way of life. There are things you have to earn with your hands."
Joined: Jan 2019
Posts: 772
Likes: 58
B
MBN old hand
Offline
MBN old hand
B
Joined: Jan 2019
Posts: 772
Likes: 58
thats an old beast Sonny..i just saw a JD 450D go for $5K at an auction..4way blade on the front..the 420 must be the predecessor by many years

Joined: Jan 2019
Posts: 1,419
Likes: 12
sonny Offline OP
MBN veteran
OP Offline
MBN veteran
Joined: Jan 2019
Posts: 1,419
Likes: 12
420's were about mid to late 50's I think.


"A machine you build yourself is a vote for a different way of life. There are things you have to earn with your hands."
Joined: Jan 2019
Posts: 1,419
Likes: 12
sonny Offline OP
MBN veteran
OP Offline
MBN veteran
Joined: Jan 2019
Posts: 1,419
Likes: 12
got it loose and running, BUT clutch wont release so you can put it in gear! Guess motor gotta come out to fix the clutch which was probably trashed by former owners!
loader works fine and dont creep down.

[Linked Image from i.imgur.com]


[Linked Image from i.imgur.com]

Last edited by sonny; 04/23/2023 04:53 PM.

"A machine you build yourself is a vote for a different way of life. There are things you have to earn with your hands."
Joined: Jan 2019
Posts: 772
Likes: 58
B
MBN old hand
Offline
MBN old hand
B
Joined: Jan 2019
Posts: 772
Likes: 58
SHAKE HANDS WITH DANGER,Sonny..you know I'm gonna 'lecture' ya to immediately cut some pipe sections as safety props for the lift cylinders..NEVER trust a hydraulic valve with your life and well being

Joined: Jan 2019
Posts: 1,419
Likes: 12
sonny Offline OP
MBN veteran
OP Offline
MBN veteran
Joined: Jan 2019
Posts: 1,419
Likes: 12
Ya!--- gotta block shit up before I start takin the motor out! Would let the loader down BUT then you cant get to anything.
Taking part of it off would be a hell of a job,--so some cylinder stops look to be best !


"A machine you build yourself is a vote for a different way of life. There are things you have to earn with your hands."
Joined: Jan 2019
Posts: 772
Likes: 58
B
MBN old hand
Offline
MBN old hand
B
Joined: Jan 2019
Posts: 772
Likes: 58

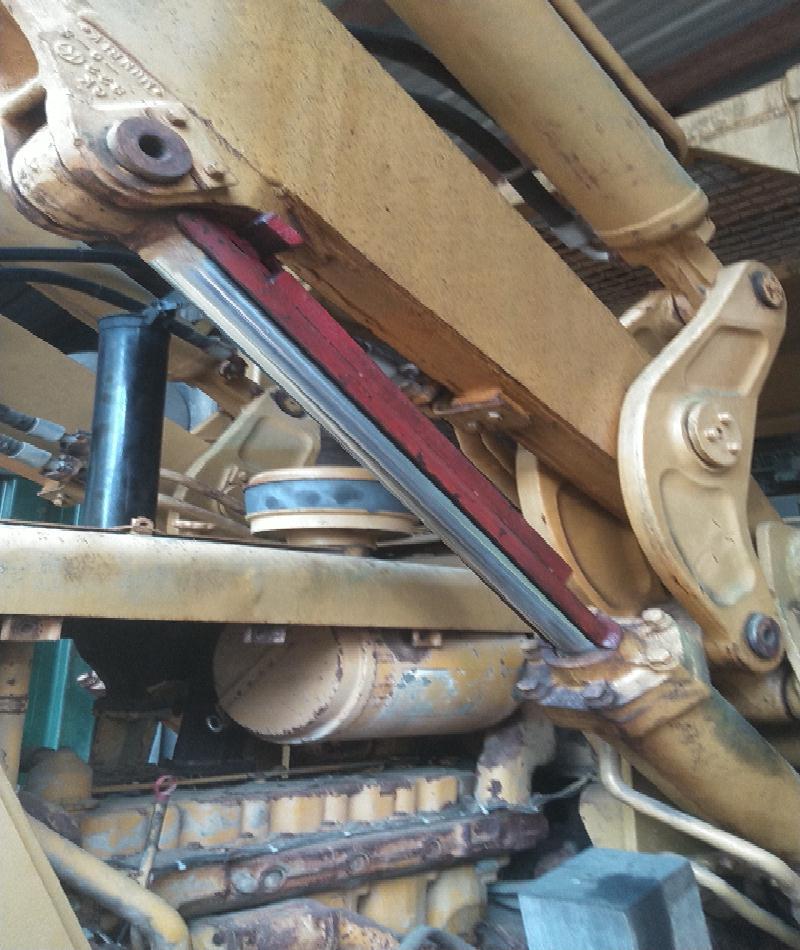

I made a set of lift cylinder supports for working on the engine with the loader mast up as well..worked great on and off for the last 20+years..1/4"wall 3"dia steel pipe cut lengthwise with end supports to spread the weight out over the cylinder end surface,it also has a section of 2"channel welded to the back side of the brace for additional strength..these supports just pop in and out, once the weight is on them they can't slip out..ive seen some Cat-made ones with u-bolts that hold them on but thought that was a bit of overkill. The loader has a factory brace on the other side to hold it up which I use additionally to the red shop made supports.Sorry for the photo orientation my photo editor is not updating properly.

[Linked Image from kuhnbros.com]

Joined: Jan 2019
Posts: 1,308
Likes: 53
JIM Offline
MBN veteran
Offline
MBN veteran
Joined: Jan 2019
Posts: 1,308
Likes: 53
I have a piece of 3" steam pipe that I prop up under the bucket if I have to work under it. Mine is small enough I could probably use a 2x4 but I like the pipe better


I know a lot about a lot of things BUT I still have a lot to learn.
Life is what you make of it. So, why not make a working machine to make it easier.
